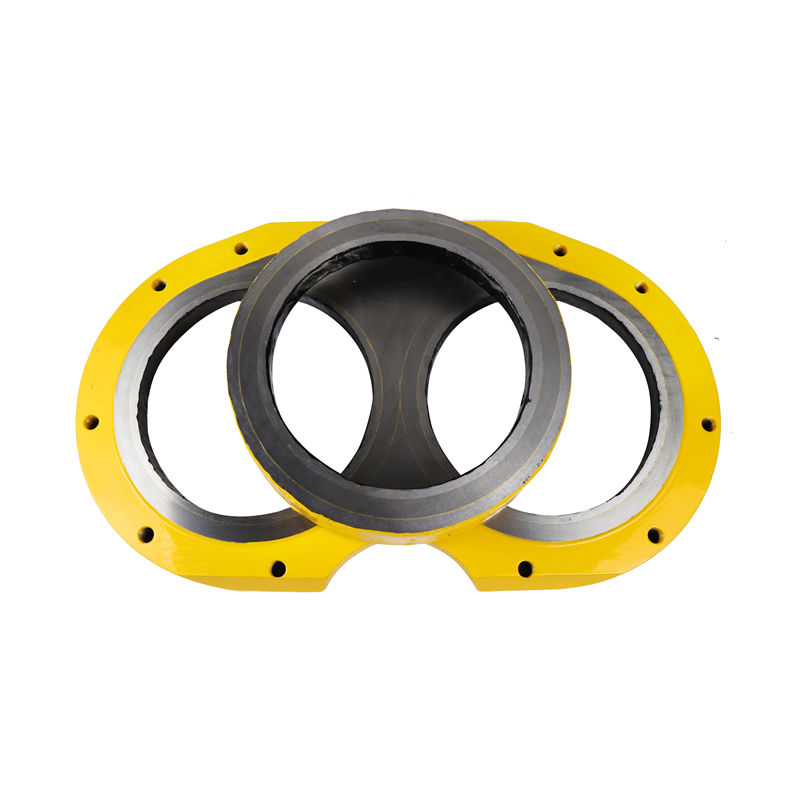

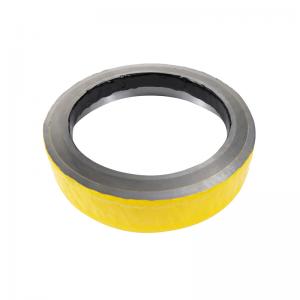

We produce various kinds of cemented carbide wear plate and cutting rings, such as Sany, Zoomlion, Putzmeister, Schwing, kyokuto, CIFA, IHI, Niigata, Mitsubishi, Dermac, complete in specifications, customized available.
Our products use the Vautid-150 electrode imported from Germany, high quality cemented carbide.
Advantages of the products
1.High hardness( above HRC70)
2.High strength
3.Wear resistance and corrosion resistance
4.Long life time
5.Cooperate with domestic company, own high satisfaction

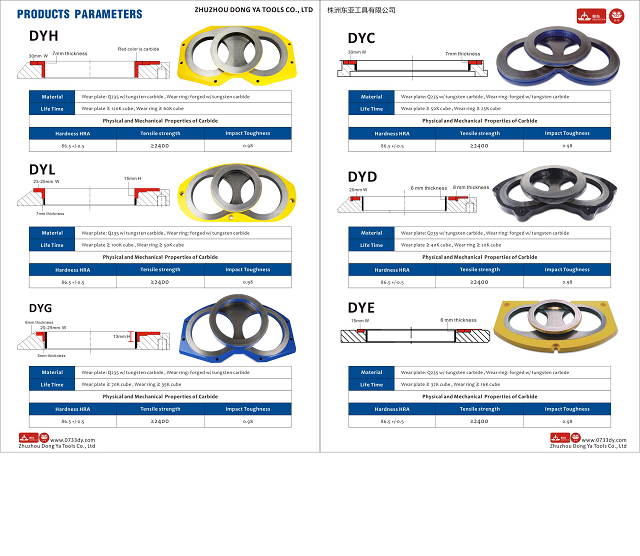

Type | DN180,DN200,DN230, wear resistance castings, whole cemented carbide , L shape cemented carbide , double cemented carbide ring, double cemented carbide, cemented carbide |
material | Cemented carbide, Q235B Steel, Vautid -150 electrode imported from Germany |
Life time | 30000~6000 cbm based on different type |
Hardness of carbide (HRA) | ≥86 | Hardness of Abrasive
(HRC) | 63 | Tensile strength | ≥2500N/mm² |
Quality standard of cemented carbide
（Grade） | F25 |
| Physical Properties |
Item | Density (g/cm³） | Hardness (HRA) | Bending Strength (N/mm²） | Grain size (μm) | Impact value （Kgf-m/cm²） |
Standard | 12.7~13.0 | 86.0~87.0 | ≥2950 | 12.~2.0 | ≥2.50 |
Item | CO (%) | Coercive Force (KA/M) | Compresive Strength (kgf/mm²） | Thermal Expansion Coefficient (cdl/cm csec) | Thermal Conductivity (cdl/cm csec) |
Standard | 24 | 11.0~16.0 | 460 | 15.7 | 0.37 |
| Metallurgical Phase |
| A02 B00 C00 E00 |
（Grade） | F20 |
| Physical Properties |
Item | Density (g/cm³） | Hardness (HRA) | Bending Strength (N/mm²） | Grain size (μm) | Impact value （Kgf-m/cm²） |
Standard | 14.1~14.3 | 91.0~92.0 | ≥4150 | 0.6~1.0 | ≥0.5 |
Item | CO (%) | Coercive Force (KA/M) | Compresive Strength (kgf/mm²） | Thermal Expansion Coefficient (cdl/cm csec) | Thermal Conductivity (cdl/cm csec) |
Standard | 12.5 | 11.0~16.0 | 460 | 5.7 | 0.17 |
| Metallurgical Phase |
| A02 B00 C00 E00 |
Why Choose Us:
1. You can get the good quality material according to your requirement at the competitive price.
2. We also offer EXW, FOB, CFR, CIF prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours.(Usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it is impossible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
